Slab pre-pour inspection in Gledswood Hills

Barrier, steel and set out, checked before any of it becomes permanent.

  • The day before the pour, steel and formwork complete
  • About 1 hour on site
  • Report within 24 hours
Get an instant quote Email us
Get a quoteLeave your details and we will call you back.

No obligation. We use your details for your quote and may contact you about it even if you don't finish.

Fully licensed & accredited

Stage2 of 7
When to bookThe day before the pour, steel and formwork complete
Time on siteAbout 1 hour on site
Inspected againstAS 2870, AS 3600, NCC Part 3.2, the engineer's slab design and the soil report

What is included in a Gledswood Hills slab pre-pour inspection

  • Slab class and layout checked against the engineer's design and the soil report
  • Edge beam and internal beam depths and widths
  • Reinforcement size, spacing, laps and trench mesh
  • Bar chairs, cover and support so steel does not sit on the ground
  • Waffle pods, void formers and pod spacing
  • Vapour barrier coverage, laps and tape at penetrations
  • Plumbing and electrical penetrations and sleeves
  • Set-downs for wet areas, garage, porch and alfresco
  • Termite management components installed before the pour
  • Formwork alignment, level and set-out against the plans
  • Stormwater pipe cover and pit positions where visible
  • Site cut, fill and pier holes where visible
  • Hot water service and meter box slab extensions formed
  • Trench cleanliness and debris before the pour
Why it matters here

Slab pre-pour inspections on Gledswood Hills builds

The slab carries everything above it and its engineering lives in beam geometry, reinforcement and cover, none of which can be seen once concrete is placed. On the Oran Park job behind these photographs the vapour barrier was recorded with sections missing, which is the clearest possible example of a pre-pour item: trivial to fix on the day, impossible to reach afterwards.

What we find at this stage in Gledswood Hills

  • Vapour barrier not continuous beneath the slab
  • Cover to reinforcement below the minimum
  • Beam geometry not matching the engineering
  • Service penetrations set out incorrectly
  • Recesses and set downs not formed
Site not graded, recorded during a frame inspection in Oran Park
Grading recorded at the frame stage, Oran Park
Sample findings

Sample defects found during our slab pre-pour inspections in Gledswood Hills

Annotated findings from Slab pre-pour inspections.

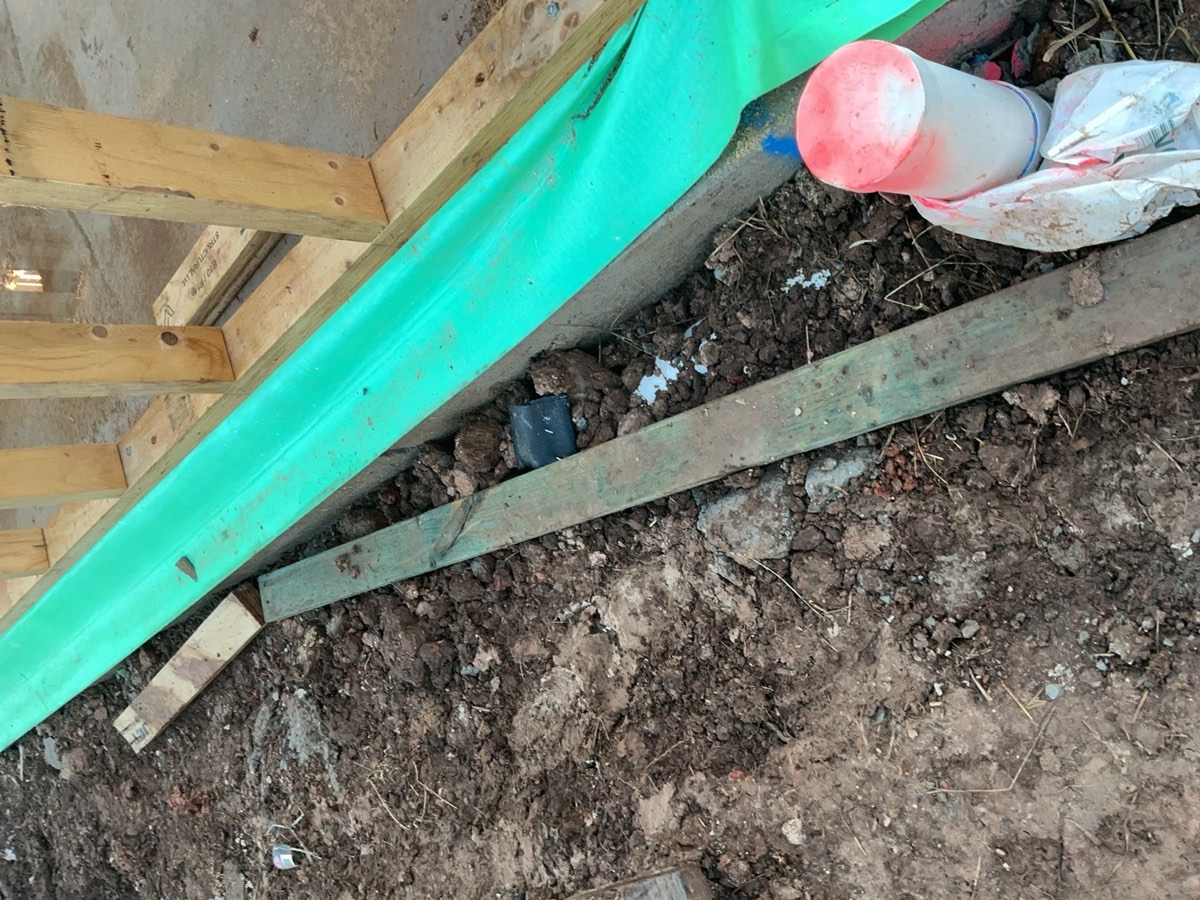

Vapour barrier sections missing, recorded during a frame inspection in Oran Park
Vapour barrier with sections missing, Oran Park
Vapour barrier sections missing, recorded during a frame inspection in Oran Park
A second barrier record, Oran Park
Site not graded, recorded during a frame inspection in Oran Park
Site not graded around the slab, Oran Park

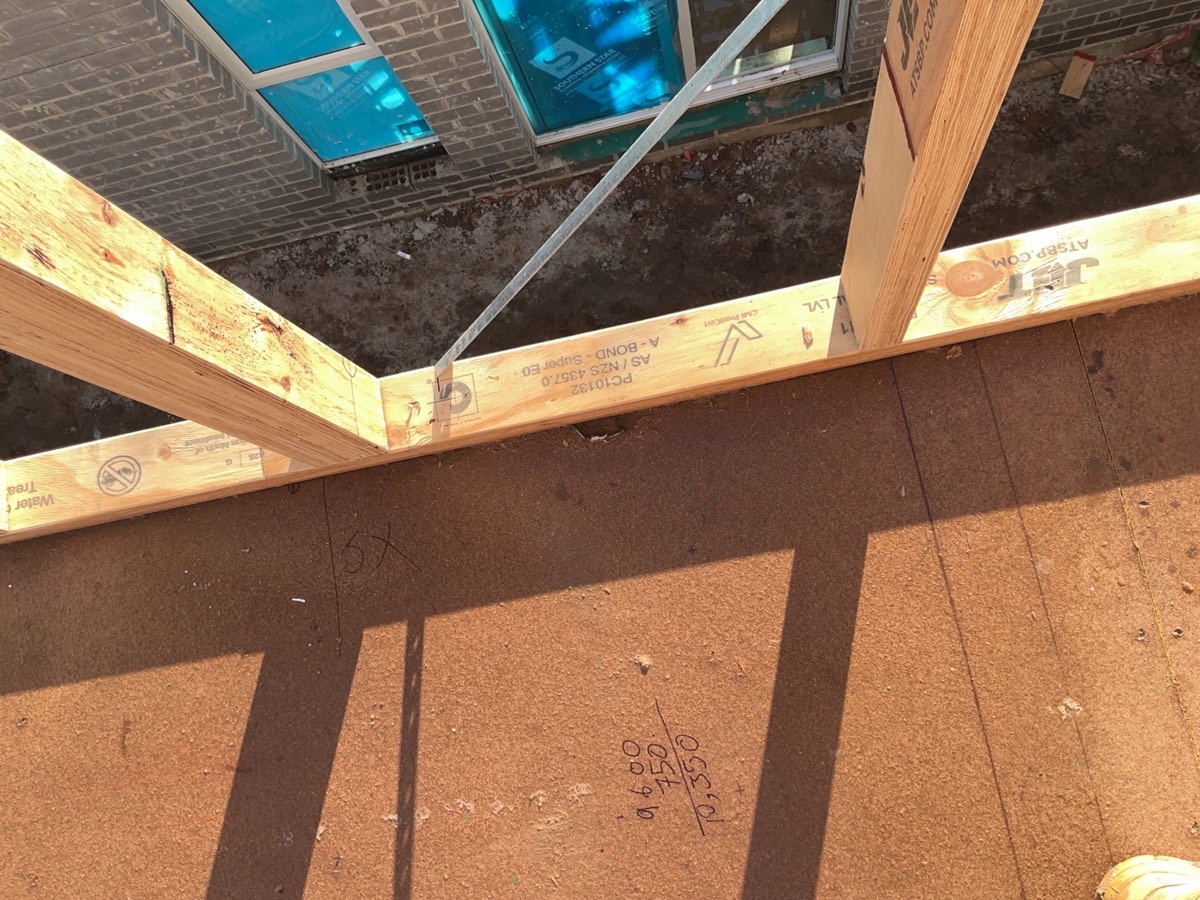

Bottom plate tie down at 1200mm maximum spacing, recorded during a frame inspection in Oran Park
Bottom plate tie down spacing, Oran Park

The other stages of a Gledswood Hills build

  1. Bored piers inspection in Gledswood Hills1Bored piersAfter boring and cage placement, before concrete
  2. Frame inspection in Gledswood Hills3FrameOnce frame and trusses are up and the roof is on, before lining
  3. Lock-up (pre-plaster) inspection in Gledswood Hills4Lock-up (pre-plaster)After roof, cladding and external doors, before plaster
  4. Fixing inspection in Gledswood Hills5FixingAfter mouldings, doors and joinery, before the painter
  5. Waterproofing inspection in Gledswood Hills6WaterproofingAfter the membrane is applied and before any tile is laid
  6. Pre-handover (PCI) inspection in Gledswood Hills7Pre-handover (PCI)Two to three weeks before your handover date

All construction stage inspections in Gledswood Hills →

Guides

Construction stage guides for Gledswood Hills

All guides →

Book a slab pre-pour inspection in Gledswood Hills

Instant online pricing for Gledswood Hills, or contact the booking team.

Get an instant quoteEmail us
FAQ

Slab pre-pour inspections in Gledswood Hills: common questions

What does the vapour barrier do?

It stops ground moisture rising into the slab and the floor above it. A section missing is a hole in a barrier that was specified as continuous, and it is under concrete an hour later.

Can anything be checked after the pour?

Only the surface. Cover, steel, beam sizes and the barrier all stop being verifiable the moment the concrete goes down.

What if the pour is moved?

We move with it and there is no charge for the change.

How long is the visit?

An hour to ninety minutes on a standard lot, with the report out that evening because the pour is the next morning.

Do you check penetrations?

Yes. Moving a waste before the pour takes minutes; moving it afterwards means cutting the slab.

What should I provide?

Your lot engineering, and the soil report it was drawn from.
